دؤوب ، مهنة ، تعاون ، ابتكار
| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | Kaideli |
| إصدار الشهادات: | CE,ISO9001-2008 |
| رقم الموديل: | KGVT |
| الحد الأدنى لكمية: | 1 قطعة |
| الأسعار: | $355.00 - $4,100.00/sets |
| تفاصيل التغليف: | صندوق خشب للتغليف |
| وقت التسليم: | 10-15 يوم |
| شروط الدفع: | TT ، LC ، ويسترن يونيون |
| القدرة على العرض: | 5000 مجموعة / مجموعات شهريا |
| الصناعات المعمول بها: | الفنادق ، محلات مواد البناء ، محلات تصليح الآلات ، مصانع الأغذية والمشروبات ، المزارع ، الاستخدام ال | موقع صالة العرض: | فييت نام ، الفلبين ، المكسيك ، تايلاند ، كازاخستان ، نيجيريا ، أوزبكستان ، طاجيكستان |
|---|---|---|---|
| التفتيش الصادر بالفيديو: | متاح | تقرير اختبار الآلات: | متاح |
| ضمان المكونات الأساسية: | سنة واحدة | المكونات الأساسية: | وحدة التكثيف |
| يكتب: | مكثف | ضمان: | سنة واحدة |
| يتم توفير خدمة ما بعد البيع: | المهندسين متاحين لخدمة الآلات في الخارج ، الدعم عبر الإنترنت | نوع المنتج: | مكثف |
| بعد خدمة الضمان: | الدعم عبر الإنترنت | موقع الخدمة المحلية: | لا أحد |
| ميناء: | نينغبو / شنغهاي / قوانغتشو | كونديتون: | جديد |
| لون: | الخيار (أبيض ، أخضر ، أسود) | ||
| إبراز: | cold room compressor Equipment,Refrigeration cold room compressor, compressor for freezer room,Refrigeration cold room compressor,compressor for freezer room |
||
Product name: V Type Cold Room Compressor For Freezer Room Refrigeration Equipment

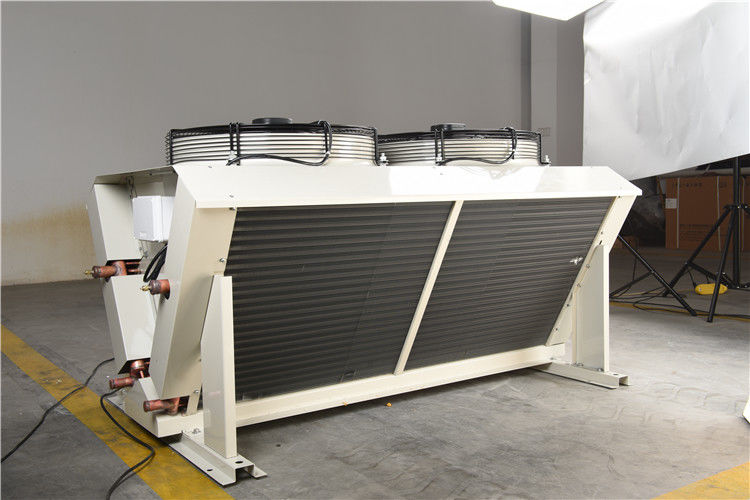

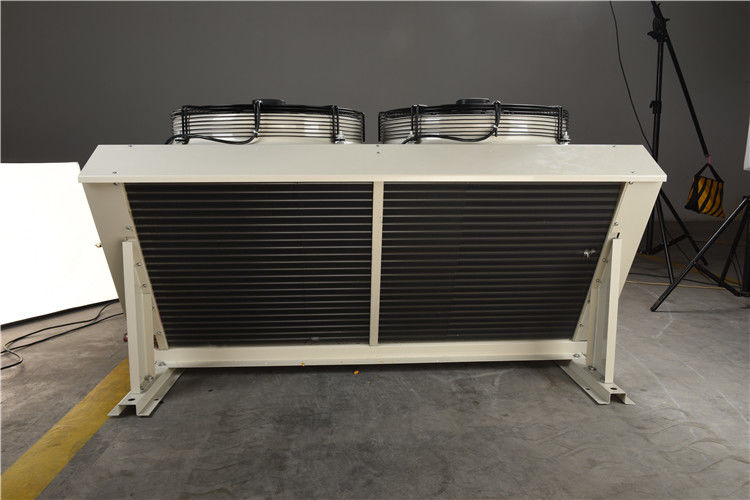

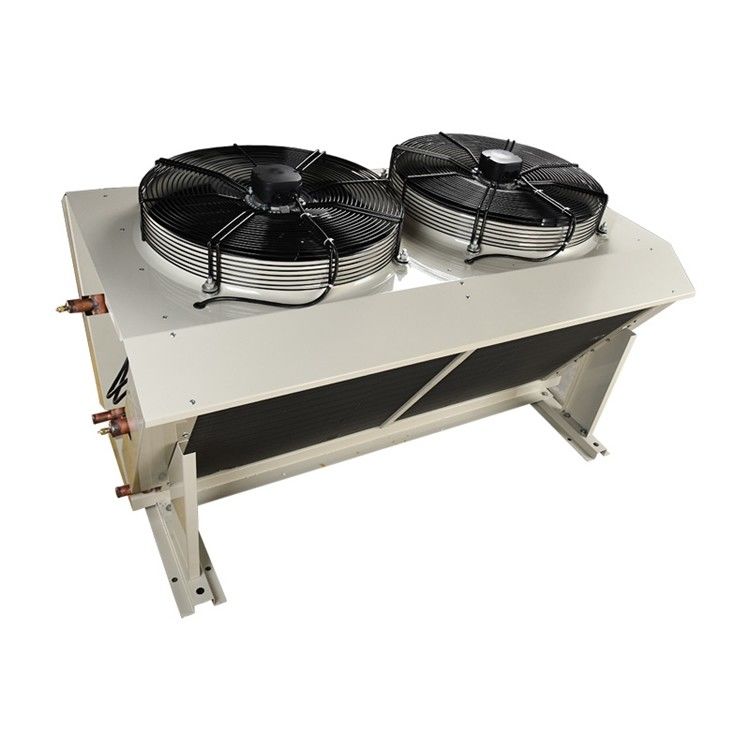

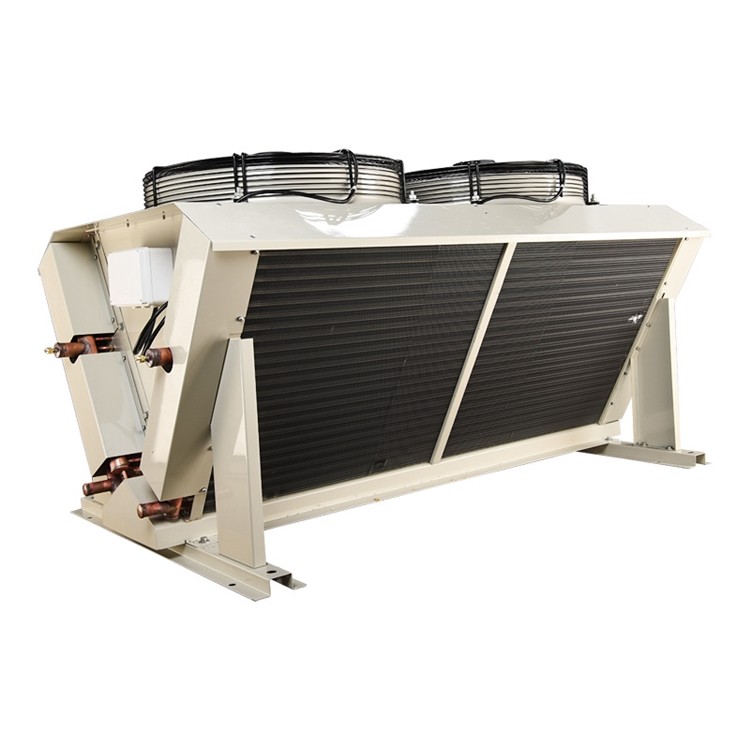

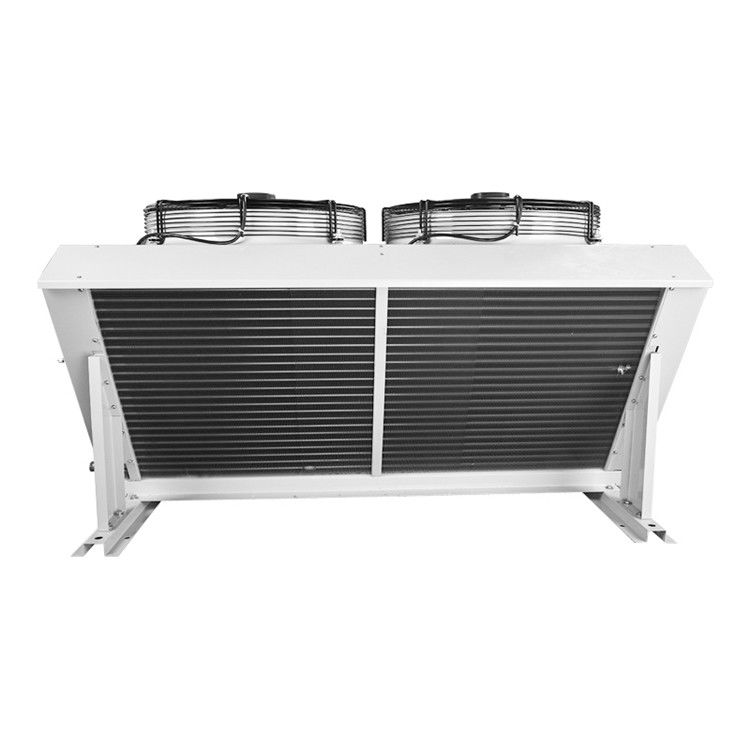

1.Condenser pictures
This energy saving condenser have four type H/V/L/U and color grey or green:
2.Specification
Nomination:KGHM004-L1/A
K(Kaideli)G(new generation high efficiency)VT(up flow V type)/
004(heat exchange capacity)-L(pipeline from left)1/2/3/4(motor quantity)A(design type)
| V type separate condenser | |||||||||
| Model | Capacity | Capacity | Volumn | Fan power | Air flow | Fanφ | Inlet | Outlet | Weight |
| R22(kw) | R404(kw) | (l) | (w) | (m³/h) | (mm) | (mm) | (mm) | (kg) | |
| KGVT027-L2/A | 27.5 | 25 | 7.9 | 2×250 | 9922 | 450 | 2×25 | 2×19 | 115 |
| KGVT039-L2/A | 39.6 | 35.7 | 9.7 | 2×600 | 15584 | 550 | 2×32 | 2×25 | 132 |
| KGVT042-L2/A | 42.5 | 38.4 | 11.3 | 2×600 | 15988 | 550 | 2×32 | 2×25 | 150 |
| KGVT047-L3/A | 47.4 | 42.8 | 12 | 3×780 | 19064 | 600 | 2×32 | 2×25 | 157 |
| KGVT056-L2/A | 56.8 | 50.8 | 13.2 | 2×800 | 22830 | 630 | 2×32 | 2×25 | 167 |
| KGVT059-L2/A | 59.2 | 53.1 | 14.1 | 2×800 | 23084 | 630 | 2×32 | 2×25 | 175 |
| KGVT062-L2/A | 62.7 | 56.9 | 16.2 | 2×800 | 23536 | 630 | 2×32 | 2×25 | 192 |
| KGVT074-L3/A | 73.9 | 67 | 17.5 | 3×780 | 28928 | 600 | 2×32 | 2×28 | 211 |
| KGVT085-L3/A | 85.7 | 76.6 | 18.9 | 3×800 | 34020 | 630 | 2×32 | 2×28 | 233 |
| KGVT093-L3/A | 93.5 | 84.2 | 24 | 3×800 | 35112 | 630 | 2×42 | 2×32 | 273 |
| KGVT098-L3/A | 97.9 | 88.8 | 26.9 | 3×800 | 35388 | 630 | 2×42 | 2×32 | 282 |
| KGVT102-L3/A | 102.2 | 94.2 | 30 | 3×800 | 35896 | 630 | 2×42 | 2×32 | 299 |
| KGVT132-L4/A | 132.9 | 120.9 | 36.4 | 4×800 | 47716 | 630 | 2×54 | 2×32 | 365 |
| V type box type up-down type condenser | |||||||||
| Model | Capacity | Capacity | Volumn | Fan power | Air flow | Fanφ | Inlet | Outlet | Weight |
| R22(kw) | R404(kw) | (l) | (w) | (m³/h) | (mm) | (mm) | (mm) | (kg) | |
| KGVK027-L2/A | 27.5 | 25 | 7.9 | 2×250 | 9922 | 450 | 25 | 19 | 115 |
| KGVK039-L2/A | 39.6 | 35.7 | 9.7 | 2×600 | 15584 | 550 | 32 | 25 | 132 |
| KGVK042-L2/A | 42.5 | 38.4 | 11.3 | 2×600 | 15988 | 550 | 32 | 25 | 150 |
| KGVK047-L3/A | 47.4 | 42.8 | 12 | 3×780 | 19064 | 600 | 32 | 25 | 157 |
| KGVK056-L2/A | 56.8 | 50.8 | 13.2 | 2×800 | 22830 | 630 | 32 | 25 | 167 |
| KGVK059-L2/A | 59.2 | 53.1 | 14.1 | 2×800 | 23084 | 630 | 32 | 25 | 175 |
| KGVK062-L2/A | 62.7 | 56.9 | 16.2 | 2×800 | 23536 | 630 | 32 | 25 | 192 |
| KGVK074-L3/A | 73.9 | 67 | 17.5 | 3×780 | 28928 | 600 | 32 | 28 | 211 |
| KGVK085-L3/A | 85.7 | 76.6 | 18.9 | 3×800 | 34020 | 630 | 32 | 28 | 233 |
| KGVK093-L3/A | 93.5 | 84.2 | 24 | 3×800 | 35112 | 630 | 42 | 32 | 273 |
| KGVK098-L3/A | 97.9 | 88.8 | 26.9 | 3×800 | 35388 | 630 | 42 | 32 | 282 |
| KGVK102-L3/A | 102.2 | 94.2 | 30 | 3×800 | 35896 | 630 | 42 | 32 | 299 |
| KGVK132-L4/A | 132.9 | 120.9 | 36.4 | 4×800 | 47716 | 630 | 54 | 32 | 365 |
Customized specification leave me message for details.
3.Want to know other related products?-click picture for detailed specification
4.How to assure quality? Any procedure?
Our QC department will make sure of each step
5.Do you factory?
We are factory established in 1995 and through 28years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.
6.Do you attend exhibition?
Each year we will attend domestic national and foreign exhibition,also we will support our agent to attend exhibition,welcome to join us.
7.Why choose us
Professional:28 years focus one thing-refrigeration equipments
Material we use sufficient
Certificate:CE, ISO, and cetiifcate of producing special pressure equipment
8.Projects reference?
9.FAQ
1, Q:Where is your factory address?
A:We are factory and located in refrigeration equipment producing base Shengzhou,Zhejiang province.
2, Q: What is your package?
A: Our package comply to custom require not include original wood.
3, Q:What is your MOQ?
A: Ordinary products can order from 1 set.
4, Q: Can you offer sample?
A: Yes,we can offer sample.and cost and delivery at your charge.
5, Q:I can't find products on your list?
A: Please contact me directly.
6,Q:How can i confirm your factory?
A: We have third party verified document of Bureau Veritas report,you can download in company page or leave me message to get.
